COGENERATION OVERVIEW

Cogeneration is the simultaneous production of electric power and usable heat from a single fuel source. Cogeneration is also known as combined heat and power (CHP). A typical cogeneration system is often a natural-gas-fired or steam-driven electric generation plant with the addition of heat recovery equipment. The recovered heat can be directly used for space heating or process heating purposes, or indirectly used to power thermal chillers for cooling purposes.

With extensive experience in energy modeling, we can help you determine your electricity needs and if cogeneration is right for your project. Goss Engineering offers feasibility studies, performs economic analysis of proposed cogeneration systems, and can create systems that meet regulatory requirements. If cogeneration is technically and economically the best solution for you, we can design the cogeneration systems to meet your needs

Cogeneration Overview

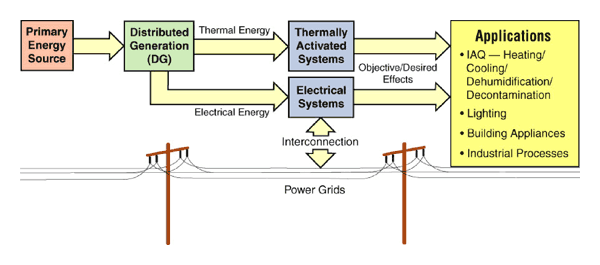

Cogeneration diagram courtesy of National Renewable Energy Laboratory

Click here for a one-page summary of cogeneration from the National Renewable Energy Laboratory.

Goss Engineering is proud to be a participant in the  Combined Heat and Power (CHP) Partnership of the U.S. Department of Environmental Protection, which promotes energy efficiency in the United States and around the world.

Goss Engineering is proud to be a participant in the Combined Heat and Power (CHP) Partnership of the U.S. Department of Environmental Protection.




February 2012  – VIDEO  – Energy Secretary Steven Chu on CHP

Energy Secretary Steven Chu responds to a question from Senator Jeanne Shaheen (D-NH) on the Department of Energy’s perspective on Combined Heat & Power during Secretary Chu’s testimony on the FY 2013 DOE budget at Senate Energy & Natural Resources Committee Hearing on Thursday, February 16, 2012.

BACK TO TOP OF PAGE


.
